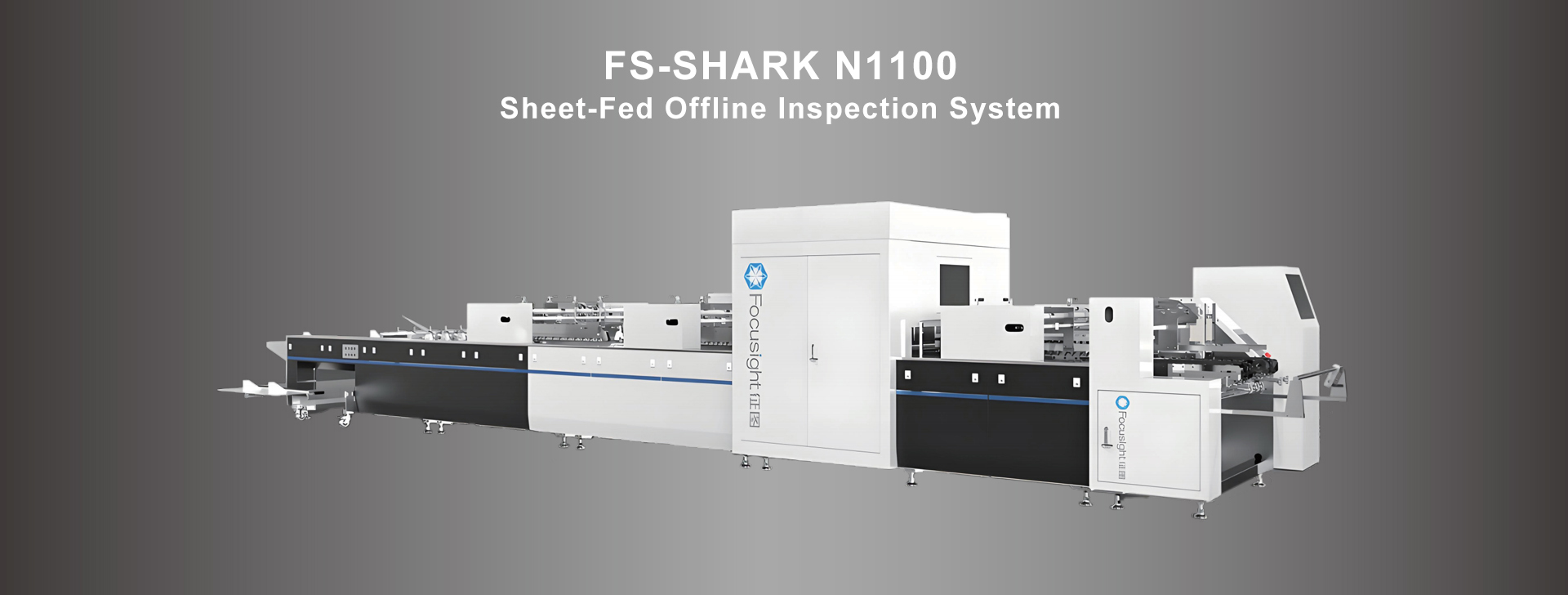

The system is suitable for surface quality inspection of single-sheet packages after die-cutting, and can be modularized to realize the switch between offline quality inspection and box gluing mode. The system can be adapted to micro-corrugated food boxes/cartons and conventional card boxes, etc. Through efficient and accurate inspection, it ensures the consistency and stability of product quality, greatly reduces the labor intensity of manpower, and effectively improves the production efficiency.

Wide product adaptability:

It can be adapted to E, F, G, N micro-corrugated food boxes, cartons, corrugated electronics, gift boxes, wine boxes and regular card boxes, covering a wide range of products.

The standard transmission of motorized bending bow, gentle slope kick-off and other structures to ensure rapid switching between different thicknesses of the box type.

High-speed detection for ultimate efficiency:

Maximum inspection speed is 220 meters per minute, matching with the speed of the gluer to ensure the production capacity.

With the negative pitch function, it can increase the production capacity by 30% compared with the conventional quality inspection machine

Accurate detection, ultimate peace of mind:

Layered process detection algorithms for independent and accurate detection of color, stitching, skin, register, foil stamping and variable information.

Patented light column paper shielding technology and light source program control, effective response to light column laser paper, gold and silver cardboard and other scenes, reduce false detection.

Efficient Modeling, Ultimate Ease of Use:

AI one-click modeling, new products within 3 minutes to complete the wizard-type modeling, you can easily start to operate.

SPECIFICATION

• Maximum detection speed 220 m/min
• Maximum inspection size (length*width) 1100mm*900mm
• Minimum inspection size (length*width) 150mm*120mm
• Paper weight 200g/mm²-800g/mm²
• Minimum spot detection size (dirty, ink spots) 0.2mm² (Contrast ratio >20DN)
• Minimum line detection size (wire pulling, etc.) width ≥0.2mm,width ≥5mm
• Color difference detection △E≥3
• Overprint detection ±0.2mm
• Floor space size (length*height*width) 11000 mm×3700 mm×2100 mm
• Total Weight 8000kg
• Gas requirements 0.8Mpa 0.8m³/min
