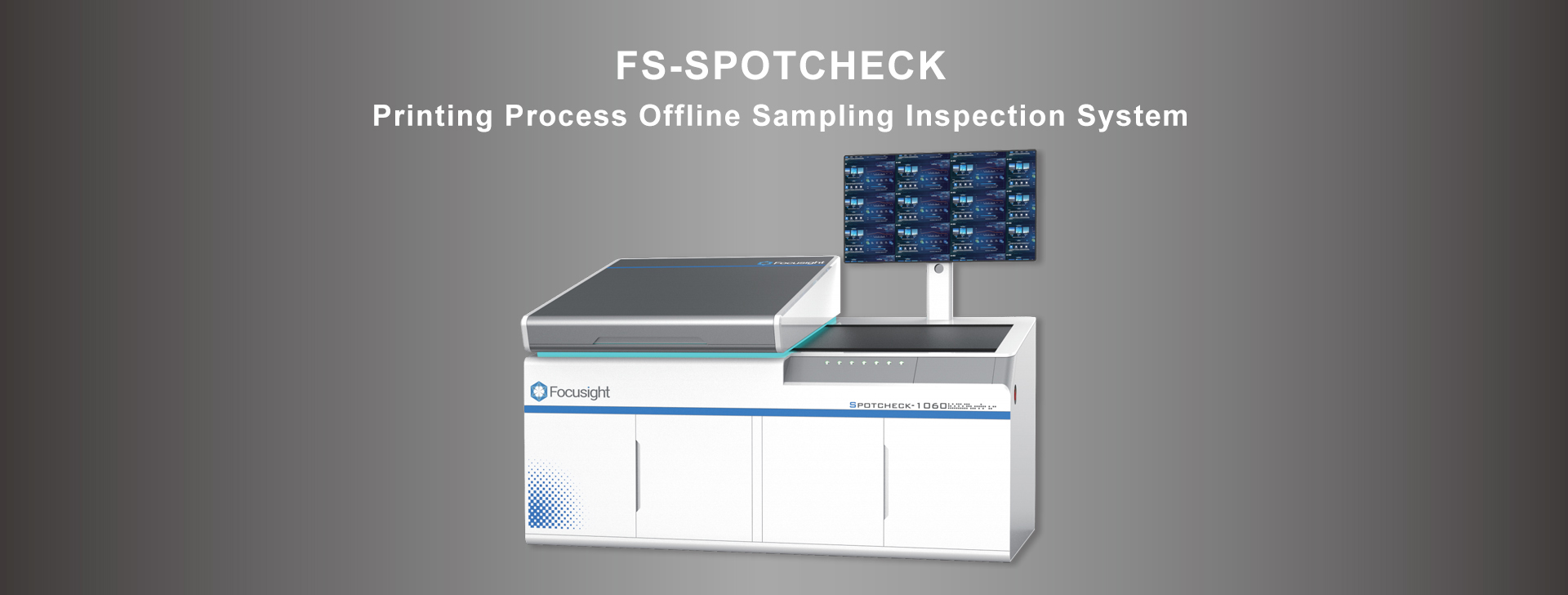

FS-Spotcheck Printing Process Offline Sampling Inspection System

Applicable to pre-press electronic design file proofreading, proofing graphic electronic proofreading, printing process first sample proofreading, printing process sampling quality evaluation, die-cutting link of multi-process sampling. Proofreading of customer signed samples with printing objects, eliminating systematic risks.

PRODUCT:

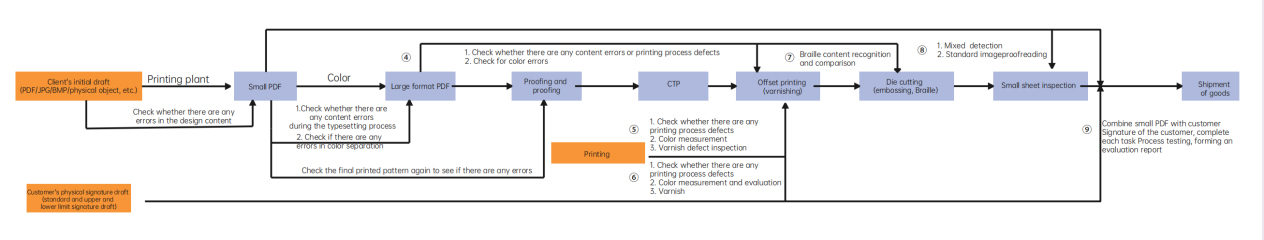

Printing full process coverage:

  • Meet the needs of content proofreading in the workflow of pre-press content modification and typesetting
  • Innovative increase of the second imaging station, support for varnish, Braille and other manual difficult to identify defects detection and proofreading, to meet the printing - die-cutting - sheet and other aspects of the sampling needs

AI-Enabled, Accurate Detection:

  • Imaging accuracy up to 500 DPI, minimum 5-pound font detection
  • Variable adaptive wind system, for thin paper, paper jam can be stable switching, to ensure stable imaging
  • Built-in AI defect model to analyze defect characteristics, accurately identify text, patterns, paper spots and other defects, and prioritize the display of key defects

Simple to operate and share with multiple machines:

  • No modeling is required, documents are available on demand, and product inspection and defect identification can be completed in 3 minutes
  • A testing equipment can simultaneously meet the needs of more than one device sampling

Accurate Color Measurement:

  • We can collect customer's high, medium and low limit samples as a color evaluation standard to determine whether the color of the product meets the requirements

SPECFICATION

  • Maximum inspection size (length*width) 1060mm*815mm
  • Supported file formats PDF、BMP、JPG、TIFF
  • Paper Weight 40g/mm²-450g/mm²
  • Imaging accuracy 500DPI
  • The type of defects that can be detected: Printing ink spots, omissions, missing text/punctuation marks, overprinting offsets, printing offsets, etc
  • Minimum spot detection size (dirty, ink spots) 0.05mm² (Contrast ratio >20DN)）
  • Minimum line detection size (wire pulling, etc.) width ≥0.05mm,width ≥2mm
  • color difference detection △E≥3
  • Overprint detection ±0.1mm
  • Dimensions (length*height*width) 280cm×145cm×165cm
  • Overall weight 1000kg
  • Power Requirements 220V/50HZ

ADAPTATION
