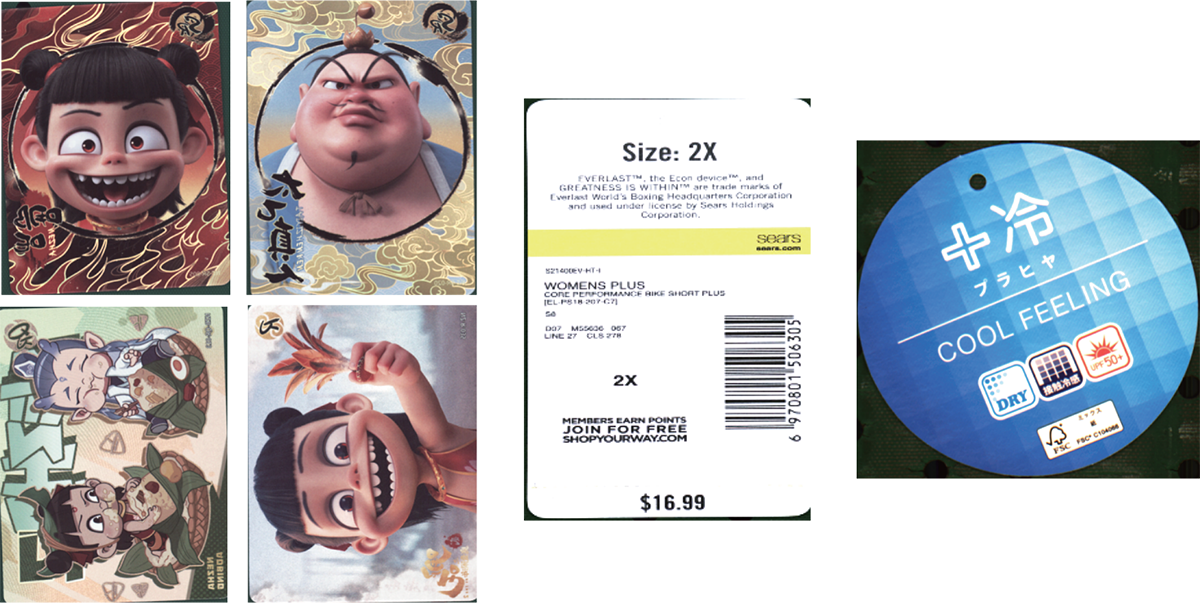

Suitable for the surface quality inspection of die-cut card products, can simultaneously carry out front and back high-precision inspection, occupies a small space. The system can be adapted to garment tags, credit cards, playing cards, game cards, etc.

Through efficient and accurate inspection, it can effectively solve the problem of mixing and printing defects, ensure the consistency and stability of product quality, and improve the production efficiency.

Fast commissioning, ultimate simplicity

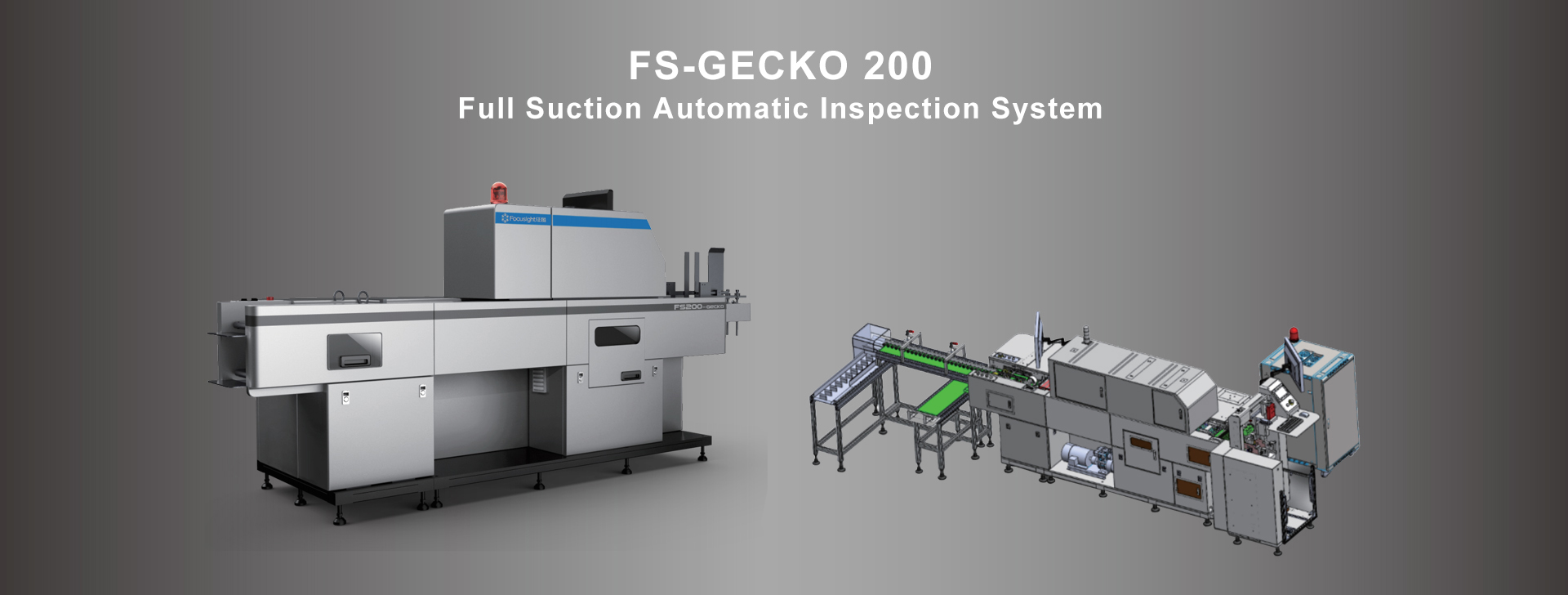

Standardly equipped with full suction air transfer platform and positive and negative double suction air belt, simple and quick commissioning

Products of the same size can be realized quickly replace the template, the time to change the order is less than 1 minute, can realize the rapid switching of small quantities of products.

Wide range of configurations and adaptability:

According to the product process optional suction hairpin to adapt to the surface of easy to scratch products, the configuration of the feeding storage bin, to realize uninterrupted suction hairpin

The option of rotary counting and depalletizing is available for receiving good products, which realizes accurate counting and storage of materials, and quick shipment.

Precision detection,ultimate peace of mind

Layered process detection algorithms to achieve independent and accurate detection of color, variable information, drawing lines, inking, registration, hot stamping, edge defects and so on

Support the same size and multiple patterns of mixed products accurate detection, can meet more than 50 sub-series

Supporting high-speed and accurate inspection of circular labeled products

Efficient Modeling, Ultimate Ease of Use:

AI one-click modeling, new products within 1 minute to complete the wizard-style modeling, can be easily started to operate

• Maximum detection speed 150 m/min
• Maximum inspection size (length*width) 200mm*200mm
• Minimum inspection size (length*width) 40mm*40mm
• Paper weight 150g/mm²-450g/mm²
• Minimum spot detection size (dirty, ink spots) 0.05mm² (Contrast ratio >20DN)
• Minimum line detection size (wire pulling, etc.) width ≥0.1mm,lengh>5mm
• Total Weight 2000kg
• Air pressure requirements 0.8Mpa 0.5m³/min
• Floor space size (length*height*width) Single Friction + Fish Scale Take-up:3650mm x 2000mm x 1800mm
• Non-stop machine on the suction + turntable paper collection: 5950m × 2800mm × 1800m
